Galvanized 12m Road Light Pole
Product description
|
type9M Single arm lamp post For Street
|
|
Suit for
|
Airport ,seaport,plaza,stadium ,square,highway,street way etc
|
Shape
|
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
|
Material
|
Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2
|
tolerance of dimenstion
|
±2%
|
Optical assembly of lighting fixture
|
IP 65
|
safety factor
|
support wind speed 160 Km/Hour 30 m /s
|
lamp pow
|
20 W- 400 W (HPS/MH) 220V (+-10%) /50H
|
Surface treatment
|
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
|
Joint of Poles
|
Insert mode,inner flange mode,face to face joint mode
|
Design of pole
|
Against earthquake of 8 grade
|
Minimum yield strength
|
355 Mpa
|
Minimum ultimate tensile strength
|
490 Mpa
|
Max ultimate tensile strength
|
620 Mpa
|
Length of per section
|
Within 14m once forming without slip joint
|
Welding
|
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
|
|
The casing anti-corrosion performance
|
Class two
|
|
Working atmosphere of lighting fixture
|
-35 °C~+45 °C
|
|
Electroshock resistant protective grade
|
class one
|
company information
YiXing FuTao metal components co.,LTD is Established in March 2000 in the beautiful and rich YiXing city with a convenient transportation, and located in 1 KM far from HeQiao town,YiXing FuTao metal components co.,LTD, with the coverage area of 53000 square meter and annual output value reaching 200million RMB,is attached to JiangSu FuTao Group.Our company is specialized in steel poles production.Our company has a lot of experience in design and production.Possess american PLS-Pole software .The company main products are Electric steel pole.High mast lighting pole.Communication tower.lamp pole etc.the company is equipped with advanced manufacturing facilities.We own a Belgium LVD company large-sized numerical control hydraulic pressure folding machine with once folding length 16,000mm and the thickness 2-25mm. We also equipped with a series of numerical control conveyor systems of flattening, cutting, folding and auto-welding ,annual output has reached 20000tons Our manufacturing process has been ISO9001:2000 certified.

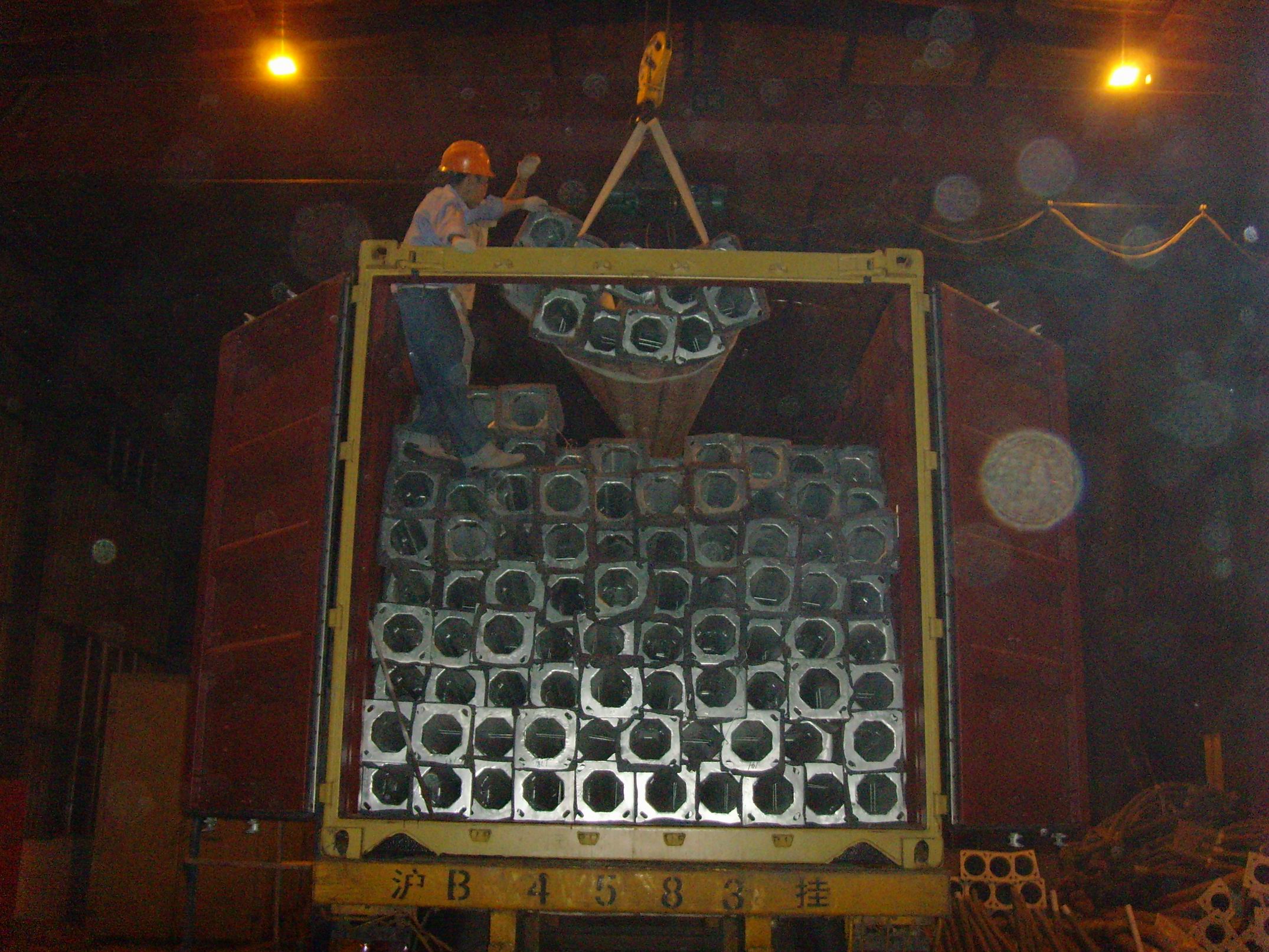

package &shipping
FAQ
1. Price Term: FOB, CFR or CIF.The price includes pole shaft, based plate, cross arm and anchor part.Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price,please specify which exact model you need, then tell us quantity of your order so that we can calculate the local transport charge and sea freight
2. MOQ: 1 set for Customized
3. Payment: Typically 30% by T/T as a deposit,balance by T/T or L/C at sight before shipment. Other payment way can be negotiated
4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit
5. Warranty : 25 years Application:roads,square etc.
our service
1. Reply your inquiry in 24 working hours
2. Experienced staffs answer all your questions in fluent English
3. Customized design is available. UEM&UBM are welcomed
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff
5. Special discount and protection of sales are provided to our distributor
